| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 338168-2 |
| Series: | AMPLIMITE HDP |
| Amperage: | 6 A |
| Gender: | Plug |
| Number of Rows: | 2 |
| Contact Plating: | Gold, Gold Flash over Palladium Nickel |
| Number of Positions: | 9 |
| Profile: | Standard |
| Packaging: | Tray |
| Shell Type: | Front Metal Shell |
| SKU: | AMP338168-2 |
| Shell Plating Material: | Tin |
| Plastic: | No |
| Shell Material: | Steel |
| Post Size: | .7 mm |
| Insert Material: | Steel |
| Color: | Black |
| Performance Level: | Level 2 |
| Preloaded: | Yes |
| PCB Mount Orientation: | Right Angle |
| PCB Contact Termination Area Plating Material: | Tin |
| Contact Mating Area Plating Thickness: | .76 µm |
| Contact Base Material: | Phosphor Bronze |
| Contact Shape and Form: | Round |
| PCB Thickness (Recommended): | 1.57 mm / .062 in |
| Centerline (Pitch): | .108 in / 2.74 mm |
| Housing Color: | Black |
| Housing Material: | Glass Filled Polyester |
| UL Flammability Rating: | UL 94V-0 |
| Approved Standards: | DIN 41652 |
| Boardlock Plating Material: | Tin |
| Connector Mounting Type: | Board Mount |
| Mating Connector Lock: | Without |
| PCB Mount Retention Type: | Boardlock |
| PCB Mounting Style: | Through Hole |
| PCB Mount Retention: | With |
| Mounting Hole Diameter: | 3.1 mm |
| Mating Connector Lock Type: | Mounting Holes |
| Montageausrichtung der Leiterplatte: | With |
| PCB Mount Alignment: | With |
| Boardlock Material: | Phosphor Bronze |
| Panel Mount Feature: | Without |
| Circuit Application: | Signal |
| Installation Height: | 7.3 mm |
| Row-to-Row Spacing: | .1 in / 2.54 mm |
| Grounded: | Yes |
| Connector and Contact Terminates To: | Printed Circuit Board |
| Shell Size: | 1 |
| Sealable: | No |
| Grounding Indents: | With |
| Footprint: | .406 in / 10.3 mm |
| Connector System: | Cable-to-Board |
| Product Type: | Connector |
| Grounding Straps: | With |
| Termination Post Length: | .126 in / 3.2 mm |
| Grounding Clips: | Without |
| Operating Temperature Range: | -67 - 221 °F / -55 - 105 °C |
| Supplier Product: | PCB D-Sub Connectors |
338168-2
Specifications
Detailed Description
Enhance your connectivity with the AMPLIMITE HDP D-Sub Connector, featuring a robust design that ensures reliable performance. With a high amperage rating of 6A, it's perfect for power-intensive applications. This two-row connector boasts nine gold-plated contacts, offering superior conductivity and corrosion resistance. The standard profile and front metal shell make it easy to integrate into your system. RoHS compliant and packaged in a convenient tray, it's a sustainable and efficient choice for your connectivity needs. Elevate your connections with the AMPLIMITE HDP D-Sub Connector.

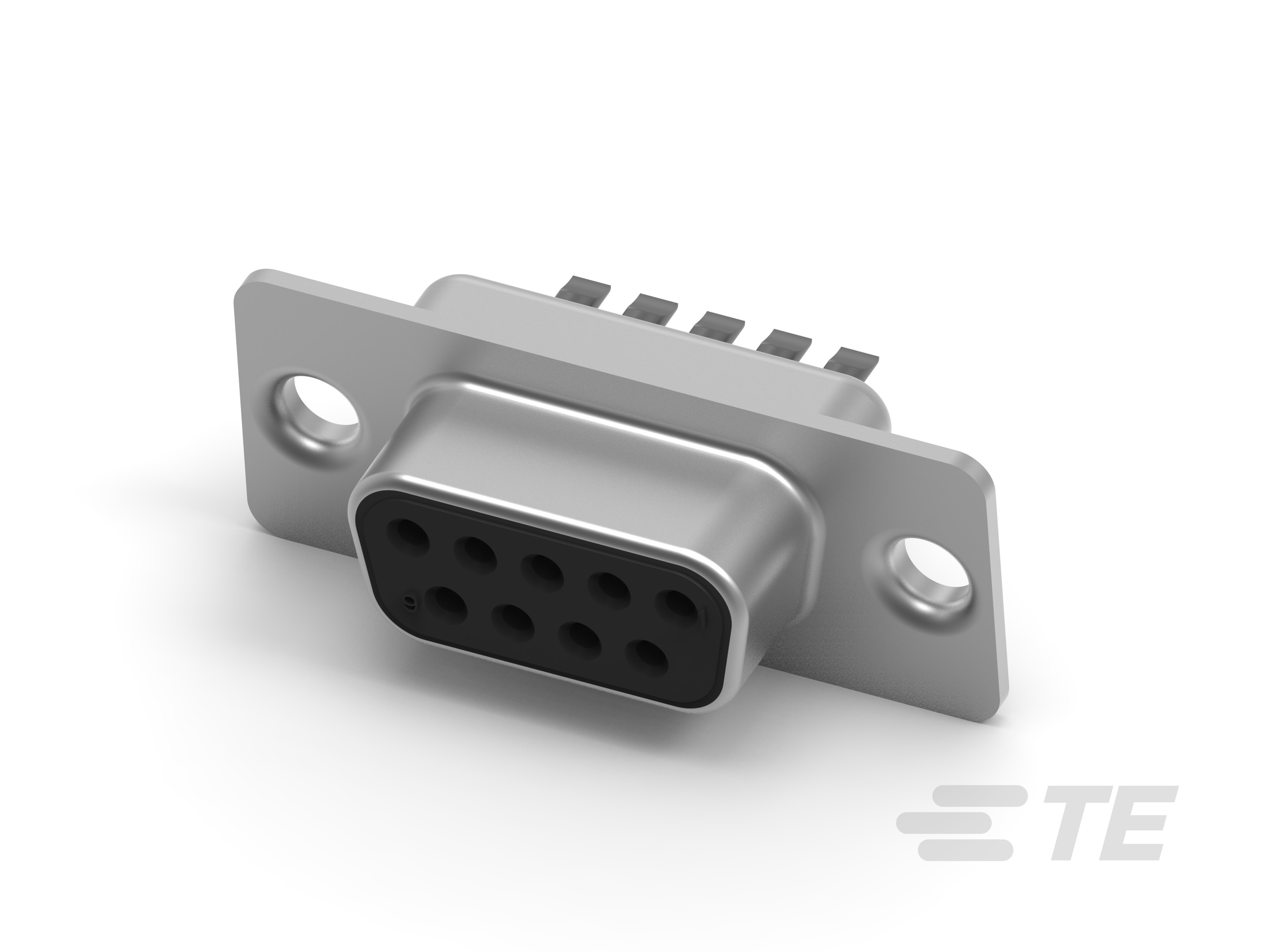

For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 3-1393483-8 |  |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 12/21/2021 | P-21-021935 - Retraction of Obsolete status. This PCN is to revise an error previously released on PCN numbers: P-21-021901, P-21-021902, P-21-021903,P-21-021904, P-21-021905,P-21-021906 & P-21-021907,P-21-021908& P-21-021909, P-21-021910, P-21-021911, The PNs listed below will remain as ACTIVE status and will not be discontinued. These PNs were previously listed on a PCN for discontinuance in error. We sincerely apologize for any confusion this may have caused. Thank you. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
