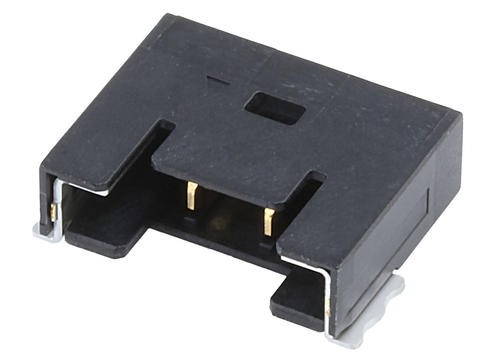

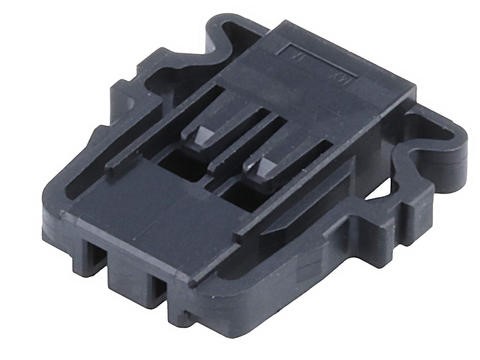

Molex Pico-Lock 3.0 Wire-to-Board Connector System

Molex Pico-Lock 3.00mm Wire-to-Board Connector System is designed for applications requiring an ultra-low profile, high current capacity, and secure locking in compact electronic devices. As notebooks, tablets, and other consumer electronics continue to shrink in size while increasing in power, this connector system provides a robust solution with its minimal 2.00mm mated height, ensuring space efficiency without compromising performance. The system supports high current ratings up to 10.0A per circuit (with AWG 16 wire) and features a positive side lock that prevents accidental disconnections due to shock or vibration.

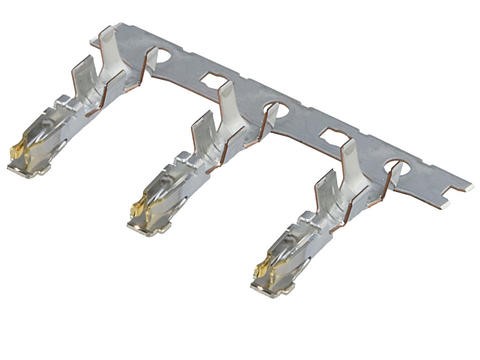

With a variety of pitch options—1.00mm, 1.50mm, 2.00mm, and 3.00mm—the Pico-Lock system offers flexibility for diverse design requirements. Engineered for durability, it incorporates gold-plated copper alloy contacts for reliable conductivity and a UL 94V-0 rated housing for flame resistance. Its secure locking mechanism and compact footprint make it ideal for consumer electronics, automotive infotainment systems, industrial automation, and telecommunications applications.
