Molex DuraClik Robust Dual-Row Connectors
Molex DuraClik Robust Dual-Row Wire-to-Board Connectors are engineered to deliver consistent electrical performance and mechanical stability in compact, high-vibration applications. Featuring a miniaturized 2.00mm pitch and dual-row configuration with up to 24 circuits, these connectors increase circuit density while reducing overall PCB footprint. Designed for harsh environments, they incorporate wide solder tabs with up to 100N PCB retention force and an independent secondary lock (ISL) providing 100N terminal retention to prevent unintended disengagement. Inertia locking with an audible click ensures proper mating, while enclosed contacts and a lock guard protect against debris, tangling, and deformation. With an operating temperature range of -40 to +125°C, DuraClik connectors offer a reliable, space-efficient solution for industrial and transportation designs requiring secure, high-integrity wire-to-board connectivity.
- High PCB retention strength – Wide solder tabs withstand up to 100N pull force
- Secure terminal locking – ISL delivers 100N retention for vibration resistance
- Mating assurance – Inertia lock with audible click prevents mis-mating
- Space-saving design – 2.00mm pitch, dual-row, up to 24 circuits
- Environmental protection – Enclosed contacts and lock guard reduce contamination and deformation
- Wide operating range – -40 to +125°C for demanding applications
- Industrial (non-Robotics)
- Non-Auto Transportation
- Automotive (non-EV)
- Consumer Electronics
Automotive
- Battery management systems
- Camera modules
- DC-DC converters
- Door modules
- Electric vehicle controllers
- Gear shifts
- Head-up displays
- Headlamps and tail lamps
- Infotainment systems
- Interior lights
- Inverter components
- LED driver modules
- LED lights
- Navigation systems
- Onboard chargers
- Power distribution units
- Seat adjusters
- Speakers and microphones
- Telematics modules
- Vehicle connectivity systems
Commercial Vehicle
- Cranes
- Industrial machinery
- Tractors
Consumer
- E-bike battery management systems
- Energy storage systems
- Induction cooking heaters
- Vending/gaming machines
- White goods
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

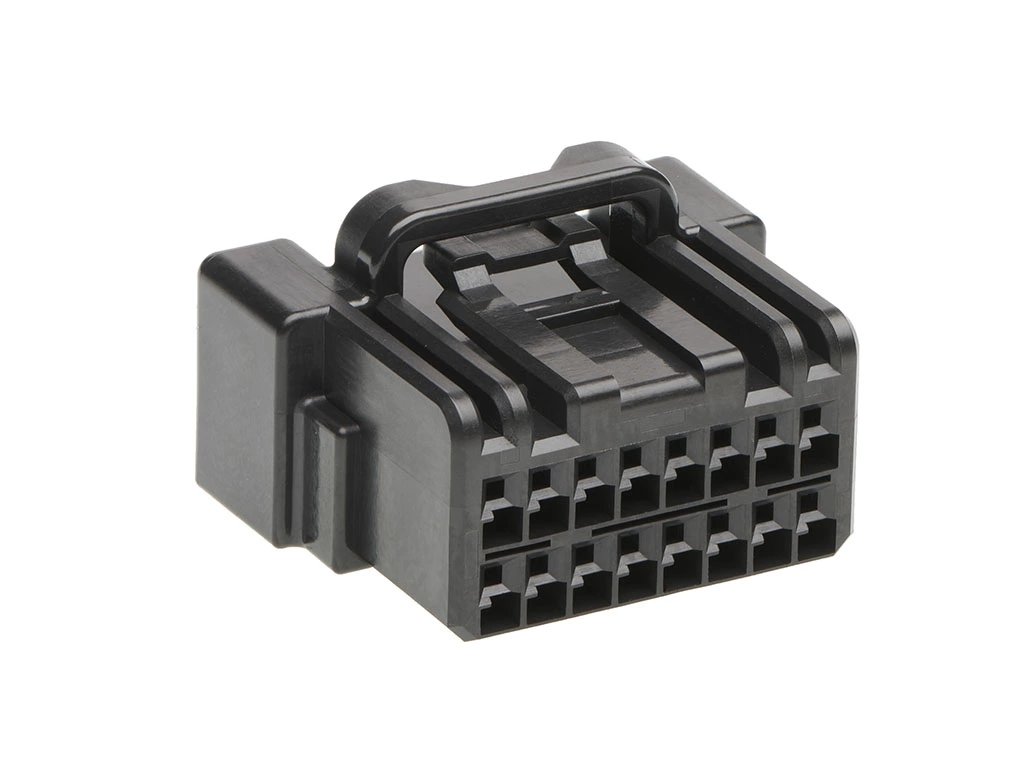

| DuraClik Robust Wire-to-Board Receptacle Housing, Dual Row, Black, 16 Circuits | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

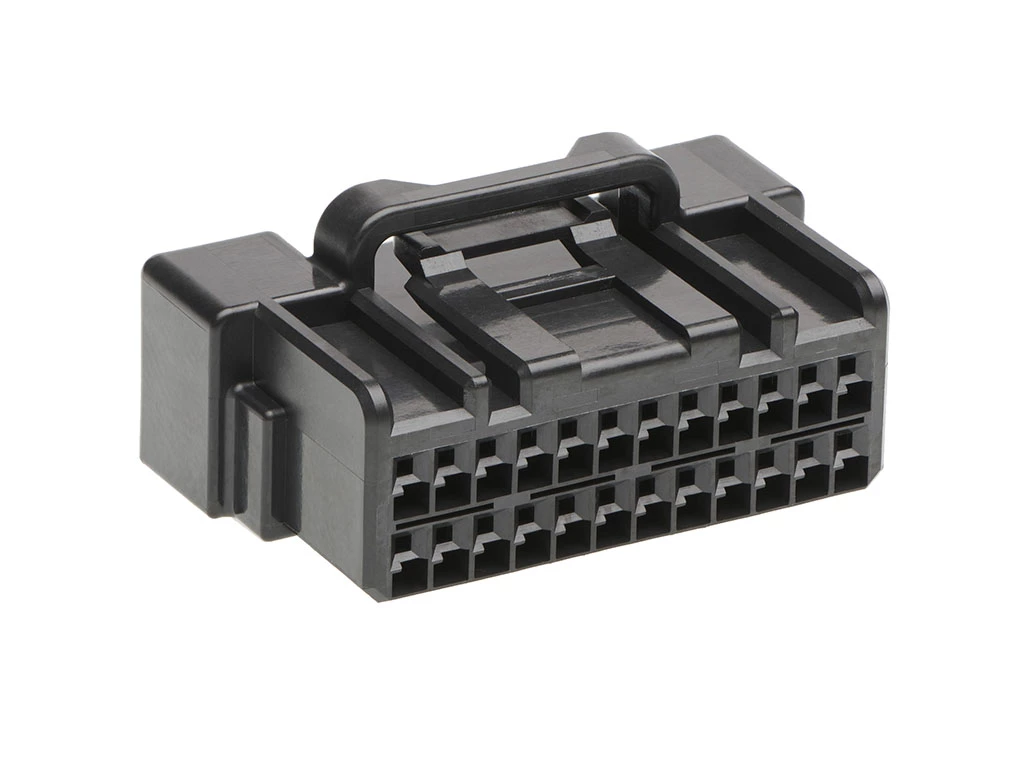

| DuraClik Robust Wire-to-Board Receptacle Housing, Dual Row, Black, 24 Circuits | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| DuraClik Robust Wire-to-Board Header, Dual Row, Right-Angle, 16 Circuits, Tin (Sn) Plating, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

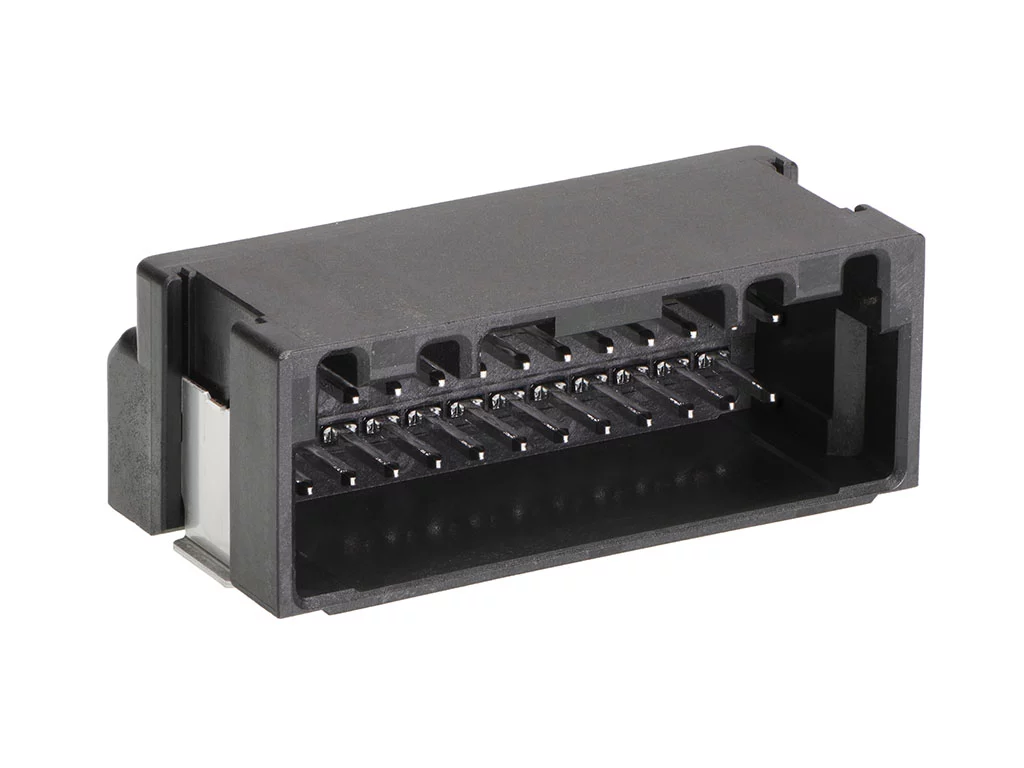

| DuraClik Robust Wire-to-Board Header, Dual Row, Right-Angle, 24 Circuits, Tin (Sn) Plating, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

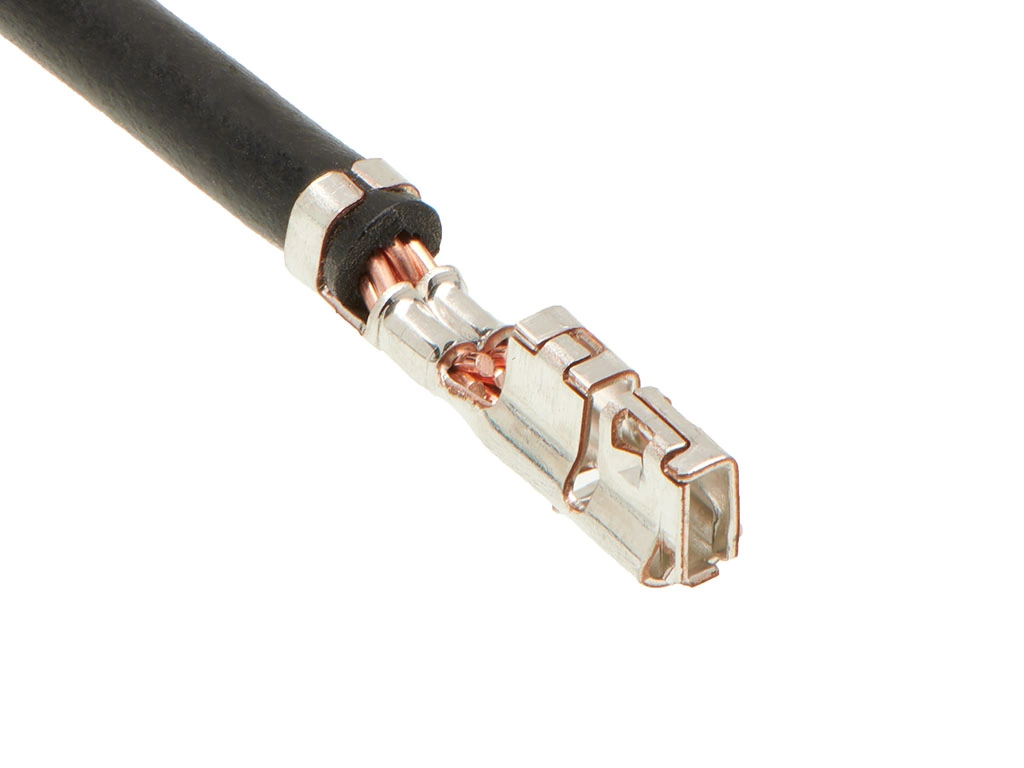

| DuraClik Robust Wire-to-Board Crimp Receptacle Terminal, Female, AVSS/AESSX 0.30mm² and 0.50mm² Wire, Tin (Sn) Plating | |||
