Molex Compactus 80-Circuit Panel-Mount Headers
Molex Compactus 80-Circuit Panel-Mount Headers deliver sealed, high-density hybrid connectivity engineered for harsh engine and under-hood environments where space, weight, and reliability are critical. Built on a 0.50mm terminal system that reduces interface area by up to 20% compared to conventional 0.64mm designs, these automotive-grade connectors support mixed power and signal circuits within a compact footprint. Heat- and vibration-resistant construction, flexible left or right cable outlet options, and short or long wire dress cover configurations provide design-in flexibility for dense mounting spaces, while supporting thin wires to aid weight reduction and improve overall system efficiency.
- Sealed, heat- and vibration-resistant design for harsh engine environments
- 0.50mm terminal system reduces interface area by up to 20%
- Modular hybrid layout supports mixed power and signal circuits
- Flexible left or right cable outlets for dense packaging
- Short and long wire dress cover options for space optimization
- Thin-wire capability supports weight reduction and improved efficiency
- Industrial (non-Robotics)
- Non-Auto Transportation
- DC-to-DC converters
- Electric motors
- Electric vehicle reducers
- Electronic control units
- Gearbox control units
- Inverters
- Motor control units
- N-in-1 E-drive units
- Onboard chargers
- Power distribution units
- Suspension control units
- Vehicle control units
- Agricultural motors
- Electronic control units
- Motor control units
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| 2.4mm, 3mm Pitch Compactus Panel Mount Header, 80 Circuits, Right-Angle, Key A, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

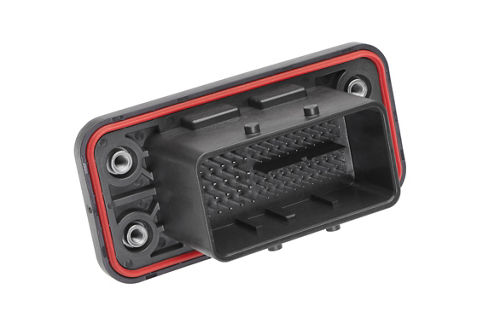

| 2.4mm, 3mm Pitch Compactus Panel Mount Header, 80 Circuits, Vertical, Key A, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| 2.4mm, 3mm Pitch Compactus Panel Mount Header, 80 Circuits, Vertical, Key B, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

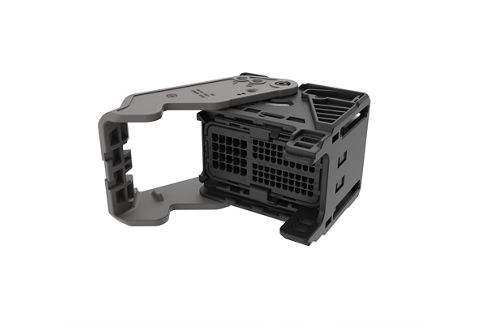

| Compactus CTX-J Sealed Connector, 80 Circuits, Key B, 60 x 0.5mm and 20 x 1mm Terminals, 0.5mm Side Wire Output | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

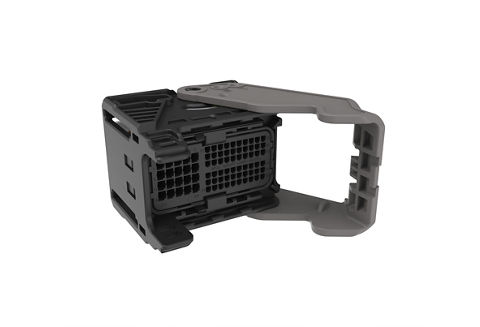

| Compactus CTX-J Sealed Connector, 80 Circuits, Key B, 60 x 0.5mm and 20 x 1mm Terminals, 1mm Side Wire Output | |||
