Hirose ZG05HV Series Connector

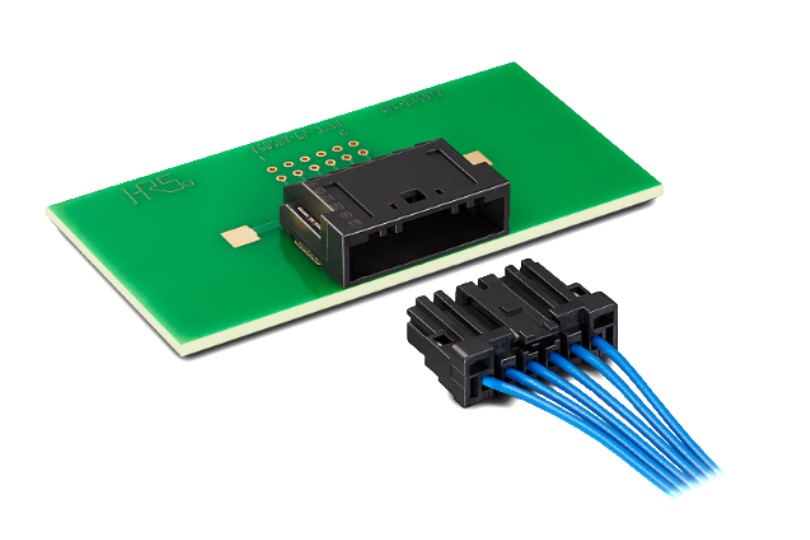

The Hirose ZG05HV Series Connector is a high-performance wire-to-board solution designed for high-voltage industrial applications. With a robust design and advanced safety features, it is rated for 1,000V AC/DC and can withstand voltages up to 3,000V. Engineered for compact, high-heat environments, it operates reliably at temperatures up to 125°C. This connector delivers exceptional performance and durability, making it an ideal choice for demanding industrial and high-voltage applications.
- Rated for 1,000V AC/DC with a high withstanding voltage of 3,000V to excel in power-intensive environments.
- Featuring a safety-first Electric Shock Prevention Design. This provides electric shock protection, thereby enhancing assembly safety.
- It is capable of enduring extreme conditions, offering high heat resistance up to 125°C and robust vibration resilience.
- Its compact design optimizes space while maintaining necessary electrical clearance, blending high performance with efficiency.
- Prevents Mis-mating when using multiple connectors
- Industrial (non-Robotics)
- Power Generation, Fuel & Energy
- Automotive (non-EV)
- Construction Equipment (Not Vehicles)
- Automotive Battery Management
- Power Conversions Systems
- Industrial Equipment
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

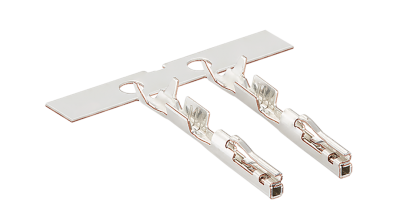

| Crimp Contact, High-Voltage Wire-to-Board Connector, 0.5mm Tab Width, 3.3mm Pitch | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Receptacle, 6 Position, High-Voltage Wire-to-Board Connector, 0.5mm Tab Width, 3.3mm Pitch, Black | |||
.jpg)
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Receptacle, 6 Position, High-Voltage Wire-to-Board Connector, 0.5mm Tab Width, 3.3mm Pitch, Orange | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||

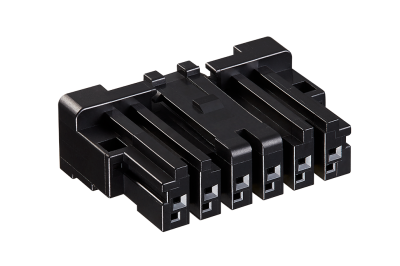

| Plug Housing, 6 Position, High-Voltage Wire-to-Board Connector, 0.5mm Tab Width, 3.3mm Pitch, Black | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Plug Housing, 6 Position, High-Voltage Wire-to-Board Connector, 0.5mm Tab Width, 3.3mm Pitch, Orange | |||
Images for Reference only
| Availability | |||
|---|---|---|---|
| Immediate Shipment: | |||
| Minimum: 0 | Multiple: 0 | ||
| Stock Location: | Unit Of Measure: | ||
| Factory Lead: | Factory Stock: | ||
| Retainer, 6 Position, High-Voltage Wire-to-Board Connector, 0.5mm Tab Width, 3.3mm Pitch, Dark Gray | |||
