1546118-2

Search for a Part:
Part Number:
Manufacturer:
Search Mode:	begins with contains exact match
Max Results:

Part Number

Available for Immediate Shipment

Stock to Build

Factory Stock(FS) or Lead Time if Heilind out of Stock

Min/Mult

Pricing

Quantity

CALL

125 Days

2400/300

2,400	… $0.74520E
9,600	… $0.56580E

Please Call 800-400-7041

Details
Tariff Info:	HTS: 85366940
Mfg Part #:	1546118-2
Disty Part #:	AMP1546118-2
Manufacturer:	TE CNTY AMP
Part Description:	2POS.5MM VERT.PLUG LH BLCK
Unit of Measure:	Each
Data Sheet:	1546118-2
RoHS:	1546118-2 Yes
Series:	124 - Eurostyle Terminal Blocks
Category:	Terminal Block Connectors

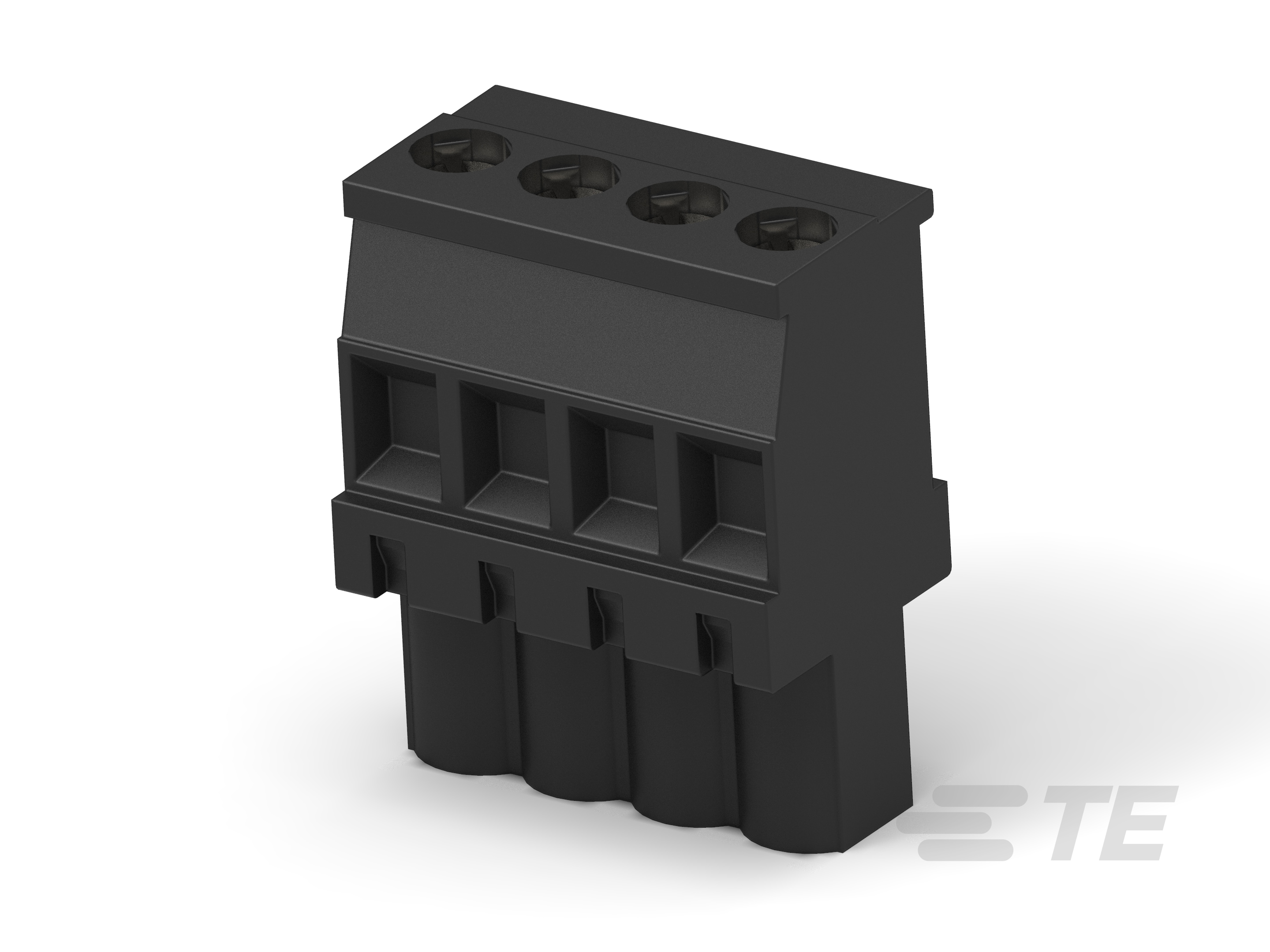

Larger Image Image for Reference only

Series

Mfg Part #	Description	Series
1-282809-5	TERMI-BLOK PLUG STACKING 4P, M	124 - Eurostyle Terminal Blocks
104345-6	08 MODII HDR SRST B/A W/HD	013 - AMPMODU Breakaway Headers
1586586-4	4P VAL-U-LOK BMI VRT HDR V2	G31 - VAL-U-LOK
1586586-6	6P VAL-U-LOK BMI VRT HDR V2	G31 - VAL-U-LOK
282809-4	TERMI-BLOK PLUG STACKING 4P.10	124 - Eurostyle Terminal Blocks
331467	N PIDG RING 12-10	097 - PIDG Terminals and Splices
4-641208-5	15P MTA156 HDR ASSY FL ST LF	103 - MTA & SL 156
52936-3	TERMINAL,PIDG SPR SPD 16-14 8	097 - PIDG Terminals and Splices
55848-1	22-18 PRE-INSUL SEALED TERM R	096 - Other Insulated Terminals and Splices
7-1879499-9	CRGH2010 5% 1K8 1W	LV3 - Commodity Resistors
776230-4	HEADER ASSY, 35 POS VERTICAL	J04 - AMPSEAL Connectors
796641-5	5 POS 5.0 MM R/A PLUG,TRM BLK	124 - Eurostyle Terminal Blocks

Features

Electrical Characteristics
Voltage	300.0 VAC
Amperes	15.0 A

Body Features
Wire Range	0.05-3.00² [30-12] mm [AWG]
Screw Material	Brass
Screw Plating	Nickel
Wire Entry Angle	Side
Interlock	Without
Wire Entry Diameter (Solid Wire)	0.03 - 2.5 mm²
Wire Entry Diameter (Stranded Wire)	0.03 - 1.5 mm²

Contact Features
Contact Base Material	Phosphor Bronze
Contact Plating, Mating Area, Material	Tin

Industry Standards
RoHS/ELV Compliance	RoHS compliant
RoHS/ELV Compliance	ELV compliant
Lead Free Solder Processes	Not relevant for lead free process
RoHS/ELV Compliance History	Always was RoHS compliant
UL Flammability Rating	UL 94V-0

Other
Brand	Buchanan
